| Modle | CES-522-L | |
| DC side parameters | ||
| Battery type | LFP | |
| Cell cycle life | >6000 Times | |
| Nominal capacity | 314Ah | |
| Number of batteries in series and parallel | 2P260S | |
| Rated energy | 522.496kWh | |
| Rated voltage | 832VDC | |
| Voltage range | 728-949VDC | |
| AC side parameters | ||
| Rated charge current | 314A | |
| Maximum charge current | 400A | |
| Rated discharge current | 314A | |
| Maximum discharge current | 400A | |
| Charge working environment temperature | 0~55℃ | |
| Discharge working environment temperature | -30~55℃ | |
| Operating environment temperature | -30~55°C | |
| General parameters | ||
| Dimensions | 3000mm*1500mm*2200mm | |
| Weight | ≤5.5T | |
| IP protection level | IP54 | |
| Cooling mode | Liquid cooling | |
| Coolant | 50% ethylene glycol aqueous solution | |
| Refrigeration capacity | 5.0kw | |
| Cooling input power | 3.3kw | |
| Communication Interface | CAN2.0 / RS485 | |
| Fire level | Perfluorohexanone | |

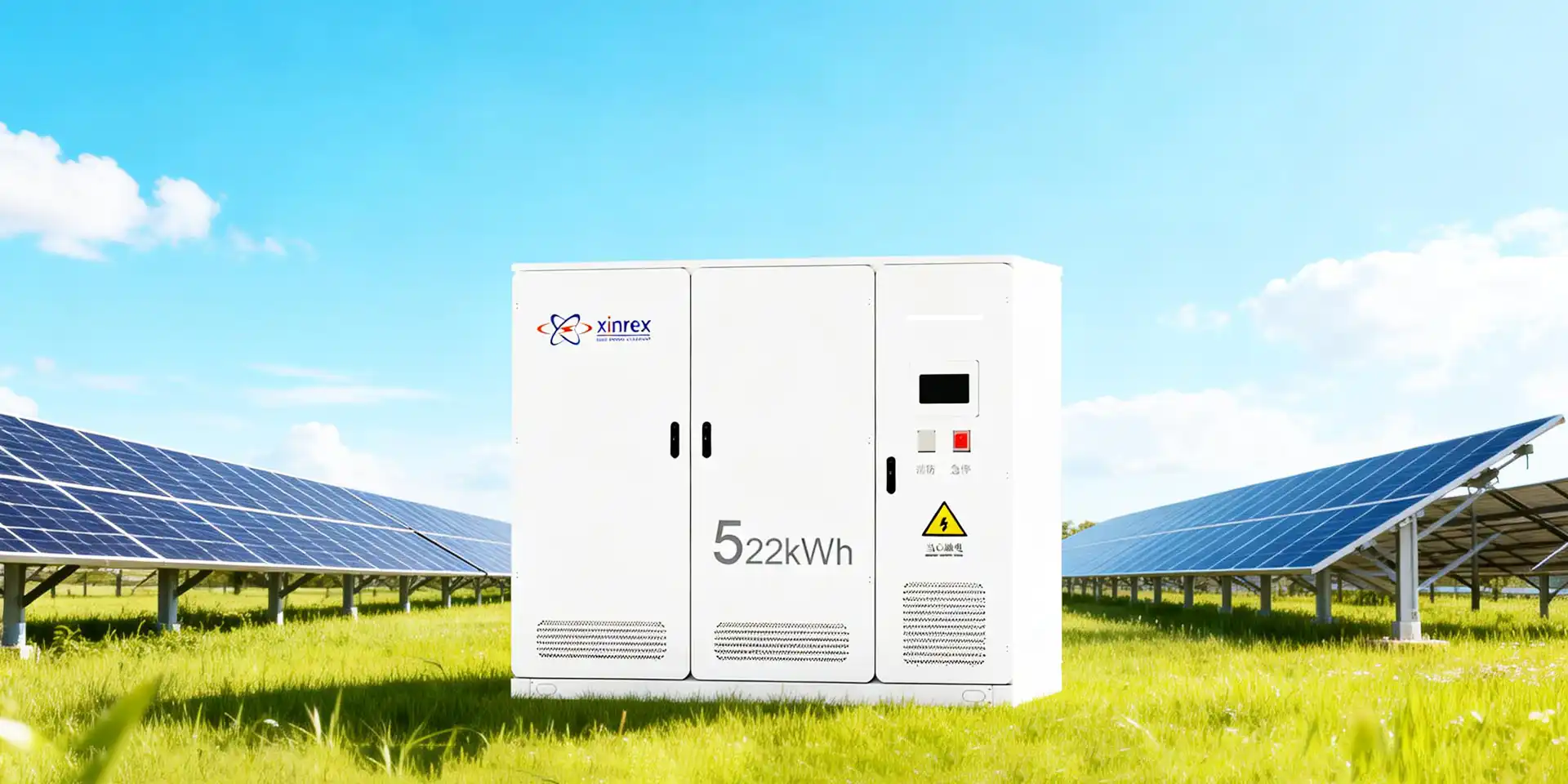

High-voltage Commercial Liquid-cooled All-in-One Energy Storage Cabinet 522kWh
Integrated design and highly integrated modular design have different optional components.
High degree of modularity, simple structure, easy installation and maintenance.
Facilitate transportation and installation, reduce infrastructure construction costs, and shorten construction time.
Plug and play.
