Modle | N-BES-500kW/1000kWh | N-BES-1000kw/2500kwh |
DC data | ||
DC data | LFP LFP | LFP LFP |
Cell cycle life | 8000 Cycles 10,000 Cycles | 8000 Cycles 10,000 Cycles |
Battery specifications | 3.2V/280Ah 3.2V/314Ah | 3.2V/280Ah 3.2V/314Ah |
Number of batteries in series and parallel | 1P224S 1P224S | 1P224S 1P224S |
Number of battery clusters | 5 5 | 10 10 |
Rated power | 1003.52kWh 1125.37kWh | 2007.04kWh 2250.75kWh |
Rated voltage | 716.8V 716.8V | 716.8V 716.8V |
voltage range | 627.2V~817.6V 627.2V~817.6V | 627.2V~817.6V 627.2V~817.6V |
Exchange data | ||
Rated AC power | 500kW 500kW | 1000kW 1000kW |
Rated voltage | 400V 400V | 400V 400V |
AC rated current | 722A 722A | 1444A 1444A |
Output THDi | ＜3% ＜3% | ＜3% ＜3% |
Communication PF | 0.1~1 lead or lag (configurable) | 0.1~1 lead or lag (configurable) |
AC output | Three phase four wire+PE | Three phase four wire+PE |
Common data | ||
Dimensions | 6,058x2,438x2,591mm | 1,219x2,438x2,591mm |
Weight | ≥20t | ≥40t |
IP protection level | IP54 | IP54 |
Range of working temperature | -20~40℃ | -20~40℃ |
Relative humidity | 0~95% | 0~95% |
Maximum working altitude | ＞2000m | ＞2000m |
Cooling method | Forced air cooling | Forced air cooling |
Container Energy Storage System
We can customize the commercial ESS range from 500kWh to 2000kWh.

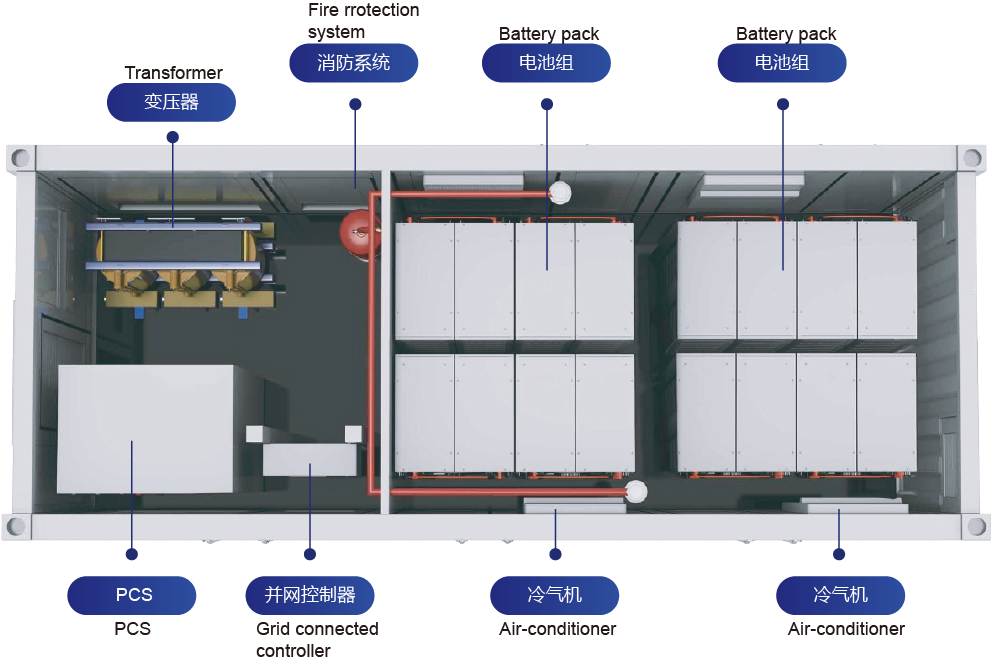

Integrated storage system developed to meet the needs of large-scale C&I storage market. it has integrated battery cabinets, BMS, monitoring system, specific fire suppression system, HVAC, PCS and EMS. PowerMass suits thermal power plants, wind farms, solar farms or islands, schools, institutes,factories, load centers and more.
