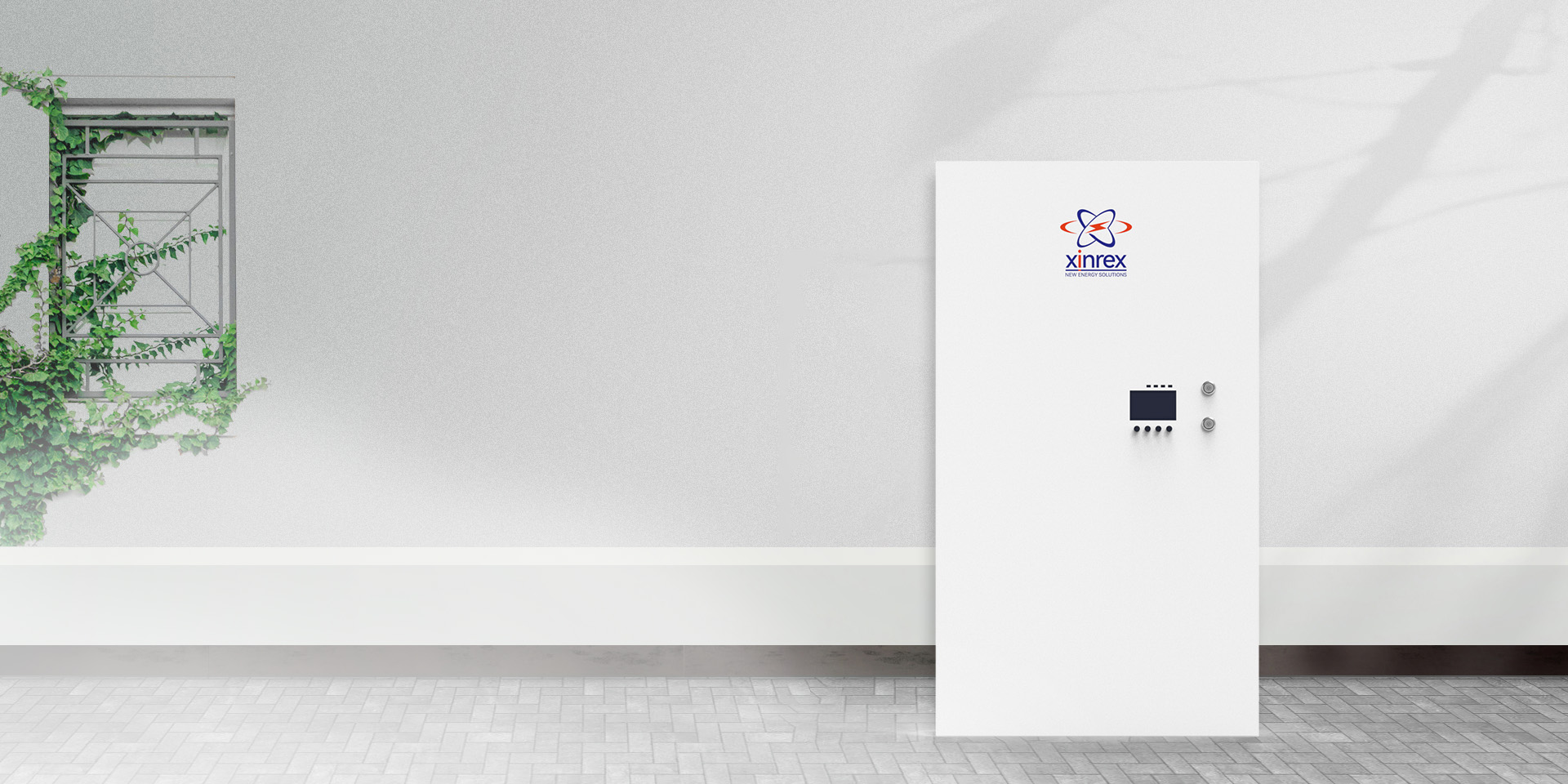

Model | 5K/5KWh |
Battery | |
Cell Materials | LiFePO4 |
Pack Method | 1P16S |
Nominal Capacity | 102Ah |
Nominal Voltage | 51.2V |
Energy | 5222Wh |
Communication Method | CAN |
Charge Cut-off Voltage | 58.4V |
Discharge Cut-off Voltage | 41.6V |
Maximum Charging Current | 100A |
Maximum Discharge Current | 100A |
Charging Mode | Two-Stage/Three-Stage Charging/PV Charging |
Operating Efficiency | 98% |
Cycle Life | ≥6,000 Times |
Internal impedance | ≤100mΩ |
Ambient Temperature | -10℃~50℃ |
PV | |
PV Charging Method PV | MPPT |
PV Input Maximum Power PV | 5000W |
MPPT Operating Voltage MPPT | 120~430Vdc |
PV input Voltage Range PV | 150V~500V |
Starting Voltage | 150Vdc |
PV Maximum input Voltage PV | 500Vdc |
MPPT Quantity MPPT | 1 |
Maximum Input Current | 30A |
Max Charging Current | 100A |
AC Input | |
Main Topology | L+N+PE |
Nominal Voltage | Default220V, 230/240VAC |
Input Voltage Range | 90~280V(Default APP);170~280V(UPS) |
Frequency Range | 45~55Hz,Default |
Power Factor | ≥0.99 |
AC Output | |
Main Topology | L+N+PE |
Output Voltage Waveform | Pure Sine Wave |
Output Voltage | Default 220VM, 230/240VAC |
Voltage Regulation | ≤±5% |
Nominal Output Power | 5000W |
Power Factor | 1 |
Frequency Range | Line Mode:Synchronized range,Battery Mode:50/60Hz±0.1% |
Harmonic Distortion | ≤3% (Linear Load);≤5% (Non-linear Load PF=0.7) |
Transfer Time | APP:Line Mode to Battery Mode 10ms(Typical) UPS:Line Mode to Battery Mode 10ms(Typical) |
Overlord Capacity | 1min@102%~110% Load; 10s@110%~130% Load;3s@130%~150% Load;0.2s@>150% Loa |
Maximum Charging Current of AC Power | 80A |
Bypass Current | 40A |
Switching Time | <10ms |
Efficiency | |
Battery Mode(Peak Efficiency) | 94% |
MPPT Tracking Efficiency (Peak Efficiency) | 99.5% |
Line Mode | >99.5%@5Kva (Full R load, without battery connect;Efficiency VS load curve with different input Voltage. |
Battery Mode | >91.5% (Full R load;Efficiency VS load curve with different input Voltage. |
Standby Power | <60W (No-load mode, battery disconnected ) |
General parameters | |
IP Protection Level | IP21 |
Ambient Temperature | -20℃-50℃ |
Operating Temperature Range | -20℃~+60℃ |
Ambient Humidity | 5-95%(No condensation ) |
Display Mode | LCD |
Warranty | 5 years for battery cells and 2 years for inverter boards |
Operating Altitude | <2000m |
Cooling | Intelligent air cooling |
Dimension | 800*455*140mm |
Weight | 54.5kg |
Noise | <60db |
