Battery data | |
Rated voltage | 51.2V |
Rated energy | 5.1kWh |
Nominal capacity | 100Ah |
Discharge voltage | 45~54V |
Charge voltage | 51.5V~54V |
Operating temperature | 0℃ ~ 45℃ (Charge) -20℃ ~ 45℃ (Discharge) |
Continuous charge current | 100A |
Peak charge current | 100A |
Continuous discharge current | 100A |
Peak discharge current | 100A |
Rated discharge power | 5000W |
Communication protocol | CAN2.0 / RS485 |
General data | |
IP protection level | IP31 |
Extensibility | Support parallel connection (refer to the user manual) |
DOD | 90% |
Lnstallation method | Wall mounted or floor standing |
Dimension | 745*460*165mm |
Weight | 51kg |
Authentication | UN, CE |

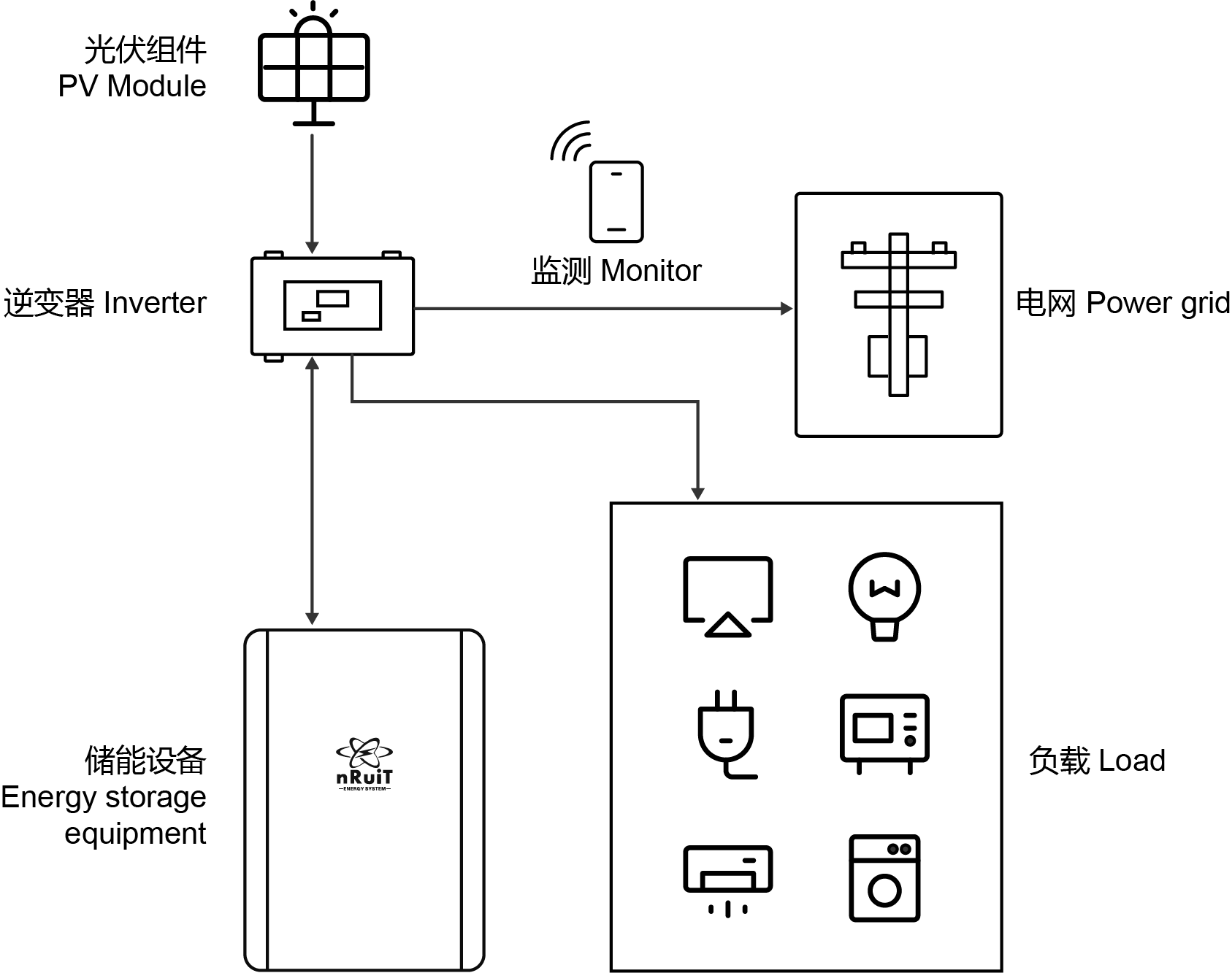

Compatible inverter | GoodWe/Deye/Megarevo/Growatt/Lux Power/TBB/Victron/Srne/Must/Senergy/Voltronic /Aotai/Sofar/Sma, etc. |
UN38.3、CE、IEC62619
* When the temperature is below 0 ℃ or above 45℃, the performance will be limited.
